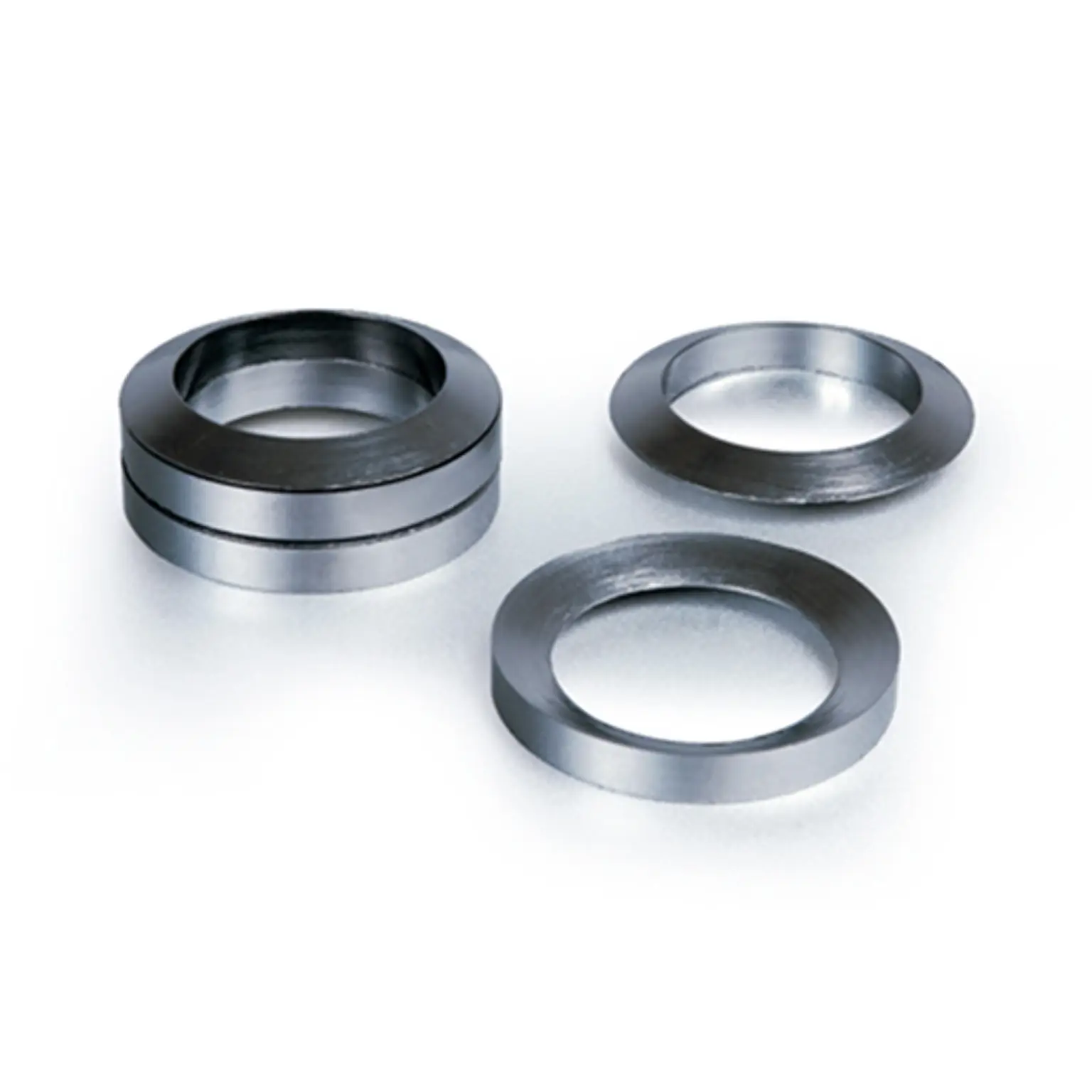

Die-Formed Dynamic Packing

Die-Formed Dynamic Packing

SKU ALS 357 Category
  • The high density Die-Formed Ring in the upper and lower part will prevent the low density graphite from crack and crushing by rotary and reciprocating.
  • It guarantees better sealing effects if you use ALS970, ALS910C and ALS900G depending on the use purpose as end ring.

ALS 357

  • Graphite tape is the packing compressed with the molding designed at different angles.



Pressure Chemical Resistance Temperature
4600psi (317bar) pH 0-14 From -400℉(-240℃) to 800℉(430℃) in air
From -400℉(-240℃) to 5400℉(3000℃) in non oxidizing
From -400℉(-240℃) to 800℉(650℃) in steam
  • Ordering information in inches and millimeters

    Inform D1, D2, T1, T2, H / Inform the stem, shaft O.D. and stuffing box I.D. and the total depth of packing
